Ball valves for water
A complete range of ball valves for plumbing, heating and sanitary systems
Valvosanitaria Bugatti ball valves are available in a variety of flow configurations, threads types and materials, in compliance with international regulations. They offer reliable solutions for water control in every application, from residential to commercial and industrial plumbing, heating and sanitary installations.
KANSAS - SERIES 100
Brass ball valve reduced bore - ISO 228/1 thread according to EN 13828
- Temperature rating: -20 ºC, +120 ºC
- pressure rating: PN20 ÷ PN64

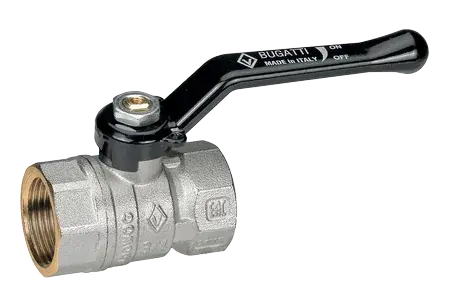

ARIZONA - SERIES 600
Brass ball valve standard bore - ISO 228/1 thread according to EN 13828
- Temperature rating: -20 ºC, +120 ºC
- Pressure rating: PN20 ÷ PN40
NEW JERSEY - SERIES 900
Brass ball valve full bore - ISO 228/1 thread according to EN 13828
- Temperature rating: -20 ºC, +120 ºC
- Pressure rating: PN14 ÷ PN50
OREGON - SERIES 300
Brass ball valve full bore - ISO 228/1 thread according to EN 13828
- Temperature rating: -20 ºC, +150 ºC
- Pressure rating: PN25 ÷ PN64
ALABAMA - SERIES 700
Brass ball valve reduced bore - ISO 7/1 thread (UNI EN 10226) according to EN 13828
- Temperature rating: -20 ºC, +120 ºC
- Pressure rating: PN20 ÷ PN64
CALIFORNIA - SERIES 200
Brass ball valve full bore - ISO 7/1 thread (UNI EN 10226) according to EN 13828
- Temperature rating: -20 ºC, +120 ºC
- Pressure rating: PN14 ÷ PN64
KENTUCKY
CW602N brass ball valve full bore - ISO 7/1 thread (UNI EN 10226) according to EN 13828
- Temperature rating: -20 ºC, +120 ºC
- Pressure rating: PN25 ÷ PN64
ALASKA
Brass ball valve bibcock, brass bibcock with screw-down valve
UTAH
Mini-valves
- Temperature rating: -20 ºC, +90 ºC
- Pressure rating: PN10
MINNESOTA
Under-sink brass ball valve
- Temperature rating: -20 ºC, +90 ºC
- Pressure rating: PN10
MIAMI
Washing machine bibcock valve
- Temperature rating: -20 ºC, +90 ºC
- Pressure rating: PN10
NEBRASKA
Motorisable ball valves, check valves and foot valves, gate valves, valves for special applications
